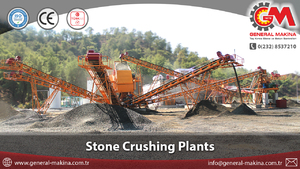

150-500 TPH Stationary Stone Crushing and Screening Plant - Clocolan

Crusher Plant Detail
Capacity of crusher plants is able to produce from 75 tons/hour to 1000 tons/hour. Crushing plants can produce custom designs on request.
Crushing and Screening Plants have ease of maintenance and adjustment mechanisms. In Crushing and Screening Plants; Granite, Basalt, River Ore, Limestone, Andesite, Calcite and these kind of hard and soft stones can be crushed easily.
Crushing and Screening Plants can be adjusted individually for each product. Also that plants provide products conveniently for production of aggregate (such as 04,12,22,32 mm). Ballast material for railway (30-60 mm), works of stabilized road. Just one crushing and screening plant does all of these things comfortably. General Machinery provides Crushing and Screening Plants with design and projects in accordance with the conditions of land which proper to fulfill production of aggregates, sand, gravel, chipping, ballast, concrete aggregate, stabilized material.
Products that we made have all the quality certificates which are conforming to European standards. Expert engineers, qualified staff of General Machinery provides hassle-free crusher plants. All our products are guaranteed for 1 year and serving with spare parts service continuously.
VIBRATING FEEDER:
• Steel thickness: 25 mm
• Abrasion parts: Austenitic steel grid at the end of the feeder,
• Abrasion steel content: %16-18 Mn + %2,2 Cr Steel
• Combination: Bunker & Vibro-Feeder equipped to mount compact with a combination of jaw crusher
• The inner of the bunker is covered with abrasion-resistant ST 37 steel plate and is bolted to the nut. It provides easy maintenance when worn out.
PRIMARY JAW CRUSHER:
• Jaws & abrasion parts: Special treated abrasion steel
• Abrasion – austenitic steel content: %16-18 Mn + % 2,2 Cr
• Abrasion – austenitic steel hardness > 450 HB
• Pitman: GS 45 casting steel
• Bearings: Heavy duty SKF-FAG-NACHI
• Motor: Heavy duty ARR-GAMAK
• Coating: Double lay epoxy coated after sand blasting and lining
• Main Construction : Heat tempered steel against resistance, welded structure
SECONDARY IMPACT CRUSHER:
Easy opening by 2 hydraulic pistons
Bearings SKF- FAG-KG-NACHI and intervening brands are used
ARR-GAMAK brand motor
Inner liner %16-18 Manganese +%2,2 Chromium Alloy Casting
Chromium Pallets
Large material feedability
Cubic product
High reduction ratio
High capacity
Low investment and operating cost
TERTIARY IMPACT CRUSHER (SAND MAKER):
• Body Metal Sheet: St-37 A1 grade
• The body is opened and closed with 4 hydraulic pistons for easy maintenance.
• Rotor is made of 70 mm sheet metal and heat treated rotor protector is available.
• Special hard fill material is applied to the cast parts of the rotor to prevent erosion
• Crushers with a high ratio of shrinkage and cubic material.
• MIL 4140 is Cr-Ni-Mo alloy forged steel.
• Bearings SKF- FAG-KG-NACHI and intervening brands are used
VIBRATING SCREEN:
• Rotating (eccentric) mile/shaft: SAE 4140 forged steel
• Coating: Double lay epoxy coated after sand blasting and lining
• Body Metal Sheet: 6-10mm ST 37
• European steel chromium alloy screen wires
• The front shot is slid and provides ease of maintenance when replacing the screen wires
• Screen inclination angle is 18 degrees
• Heavy Duty cage Type SKF-FAG Bearings, labyrinth structured with greaser
VIBRATING SCREEN:
• High quality Polat reductor
• 40x60 mm. profile used for the production of construction 3’’ tube and 6204 ZZ bearing used for rulo production
• Belts are 4 layer double stick.
• Conveyor belt system was protected with emergency stop. All motors are GAMAK brand
• The walkingway platforms and top covers are included.
CONTROL CABIN and ELECTRIC PANEL:
• Type: KK2
• Dimension: 4000 x 200 mm.
• Made by Polyester. There are 3 window side and easly assambling to concrete bottom.
• In this cabinet will be only start-stop button for Vibreting Feeder
• All electrical components are Siemens brand
• Air conditioner included
